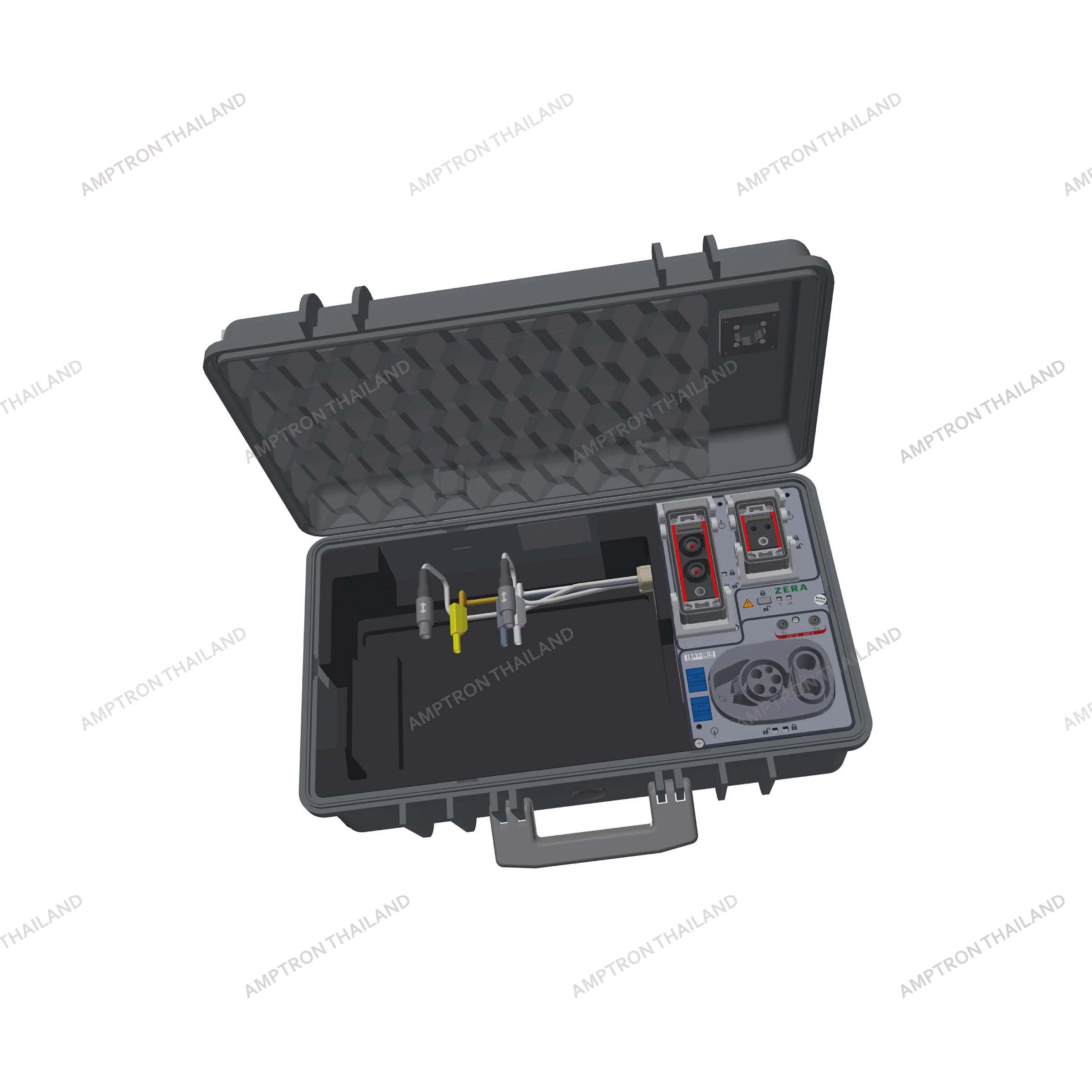

EMOB200-10 Test case for AC and DC charging stations
Brand : ZERA
Model : EMOB200-10
"Current measurement up to 80 A AC / 200 A DC
Connector type 1 / CCS 1"
• Phases : 1
"• Voltage measurement max.
- 1000 V (DC)
- 300 V (AC)"
"• Current measurement max.
- 200 A (DC)
- 80 A (AC)"
• Accuracy class 0.1
"• Main functions
- CAT II
- Direct connection to charging stations for electric vehicle
- Direct measurement up to 200 A (DC)
- Direct measurement up to 80 A (AC)
- Energy measurement during the charging process"
"• Scope of application
- On-site measurement (without mains supply) of charging stations of electric vehicles"
"• Specials
- Automatic control of the EMOB test case by WIFI
- Correct connection
- Charging cable detection
- Security check
- Overcurrent detection
- A comprehensive range of accessories for on-site testing in a separate case
- Charging cable with additional measuring line (sense)
- Comfortable control by guided test sequences via WinSAM and tablett
- Electromechanical plug locking
- Independent of the mains supply by battery operation of the connected reference meter (MT3x0s2)
- Short set-up times due to permanent connection of the s2 device and the test case EMOBxxx
- Connector type 1 (USA)
- Suitable for high-current/quick charging stations
- Temperature monitoring of the high-current contacts"
