Power Quality Monitor
Brand  : ACCUENERGY
Model : Acuvim 3
Size : W187mm x H132mm x 88.2mm

  • Features
    • Top class of Power Quality Meter with revenue grade accuracy 0.1s with Touch screen control
    • Fast Log captures instantaneous power quality events and saves a report for future assessment
    • Reduce downtime and prevent unexpected equipment errors with sophisticated power quality metering with event notification via email, digital output, or relay output
    • Touchscreen 7" (17.78 cm), built-in web interface for real-time analysis on the go
    • Receive instant email notifications to stay informed of system or equipment failures from anywhere
    • IEC 61000-4-30 Class-A Compliant Metering of Split-Second Power Malfunctions
    • IEC 61557-12 Class 0.1 Accuracy Compliant for Voltage/Current RMS
    • IEC 62053-22 Class 0.1s and ANSI C12.20 Class 0.1 Accuracy for Active Energy
    • IEC 62053-24 Class 0.5s Accuracy for Reactive Energy
    • Multi-protocol support: Modbus-RTU, Modbus-TCP/IP, BACnet-IP, DNP3 TCP, IEC 61850, & SNMP

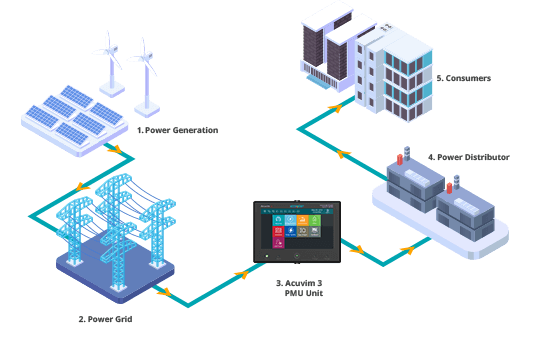

    • PMU (IEEE C37.118) for fast and reliable synchrophasor measurement

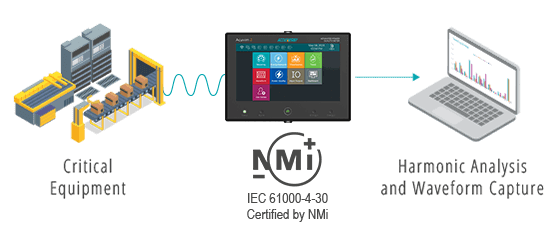

    • Waveform Capture detection up to 512 sample/cycle and stored in COMTRADE format
    • Time of Use TOU with eight tariff and up to twelve billing periods
    • Fast Log capture with 1 cycle RMS
    • 100 dataloggers with user-selectable logging interval and parameters
    • Data post: HTTP/HTTPs, SFTP, and email
    Power quality metering
    IEC 61000-4-30 Class-A compliant measurement for:
    • Voltage/Current RMS, updated at 1 cycle with IEC 61557-12 Class 0.1 accuracy
    • Frequency, 1mHz accuracy, 40 to 70 Hz
    • Voltage/Current harmonics magnitude and angle, up to 127th
    • Voltage/Current unbalance
    • Flicker
    Power quality reporting and analysis
    Power quality event detection for:
    • Voltage dip/swell/interruption based on 1 cycle RMS
    • Current dip/swell based on 1 cycle RMS
    • Transient overvoltage based on 32 ksps
    Power quality event triggering email notification, or DO/RO Up to 65,535 power quality event logs in circular buffer
    Waveform Capture
    • Triggered by power quality or manually
    • User configurable sample rate up to 512 sample/cycle
    • User configurable duration (pre-trigger + post-trigger) from two cycles to two seconds at 512 sample/cycle
    • COMTRADE format, download from webpage/SFTP, or post via HTTP(s), FTP, SFTP
    Fast Log Capture
    • Triggered by power quality or manually
    • Capture with 1 cycle RMS
    • User configurable duration, same as Waveform Capture
    • Fast log report, download from webpage/SFTP, or post via HTTP(s), FTP, SFTP
    Reporting
    • EN50160 compliance report
    • IEEE 519 compliance report
    • ITIC (CBEMA) Curve
    • SEMI-F47 Curve
    Advanced power and energy metering
    IEC 62053-22 Class 0.1S active energy measurements
    IEC 62053-24 Class 0.5S reactive energy measurements
    Import/export/net/total and Four-Quadrant energy measurements
    Time of Use (TOU) support:
    • Up to eight tariff rates
    • Flexible calendar and billing date configuration
    • Record current and up to twelve historic billing periods

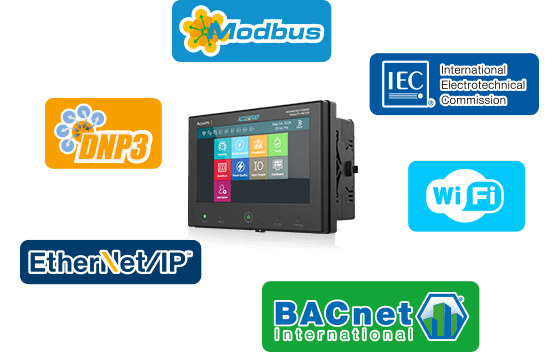

    Communication protocols
    • Modbus-RTU via RS485
    • Dual ethernet
    • WiFi
    • Modbus-TCP/IP
    • HTTPs Webserver
    • HTTP/HTTPs Post
    • BACnet-IP
    • FTP Post
    • SMTP
    • SNMP
    • SNTP
    • DNP3 over IP
    • IEC 61850
    • PMU
    Applications
    • Power quality
    • Data centers
    • Industrial automation
    • Manufacturing facilities
    • Transportation
    • Utilities
    • Healthcare
    • Telecommunications
    • University laboratories
